Aarna Renna

Aarna Sliding

Description

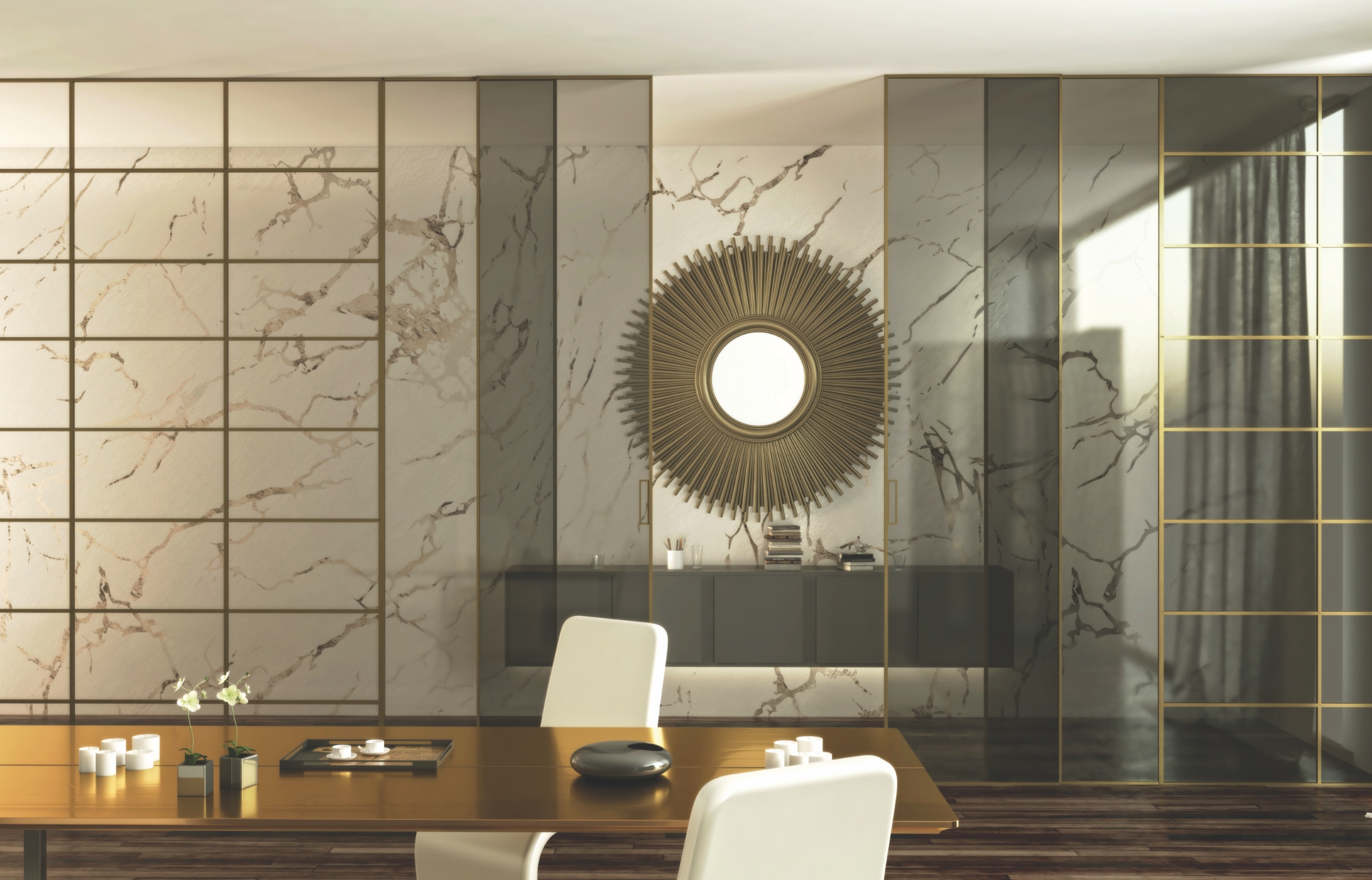

Aarna Renna is an ultra-slim sliding system designed to be the slimmest in its class. It renders an exquisite vibe, making it perfectly suited for luxurious settings. Engineered with a slight soft-close mechanism, Renna aspires to be the most premium door slider in the Indian market, combining elegance with a simple architectural language.

Key Features

  • System: Aarna Renna ultra-slim sliding door system.
  • Operation: Features an advanced, slight soft-close mechanism for premium functionality.

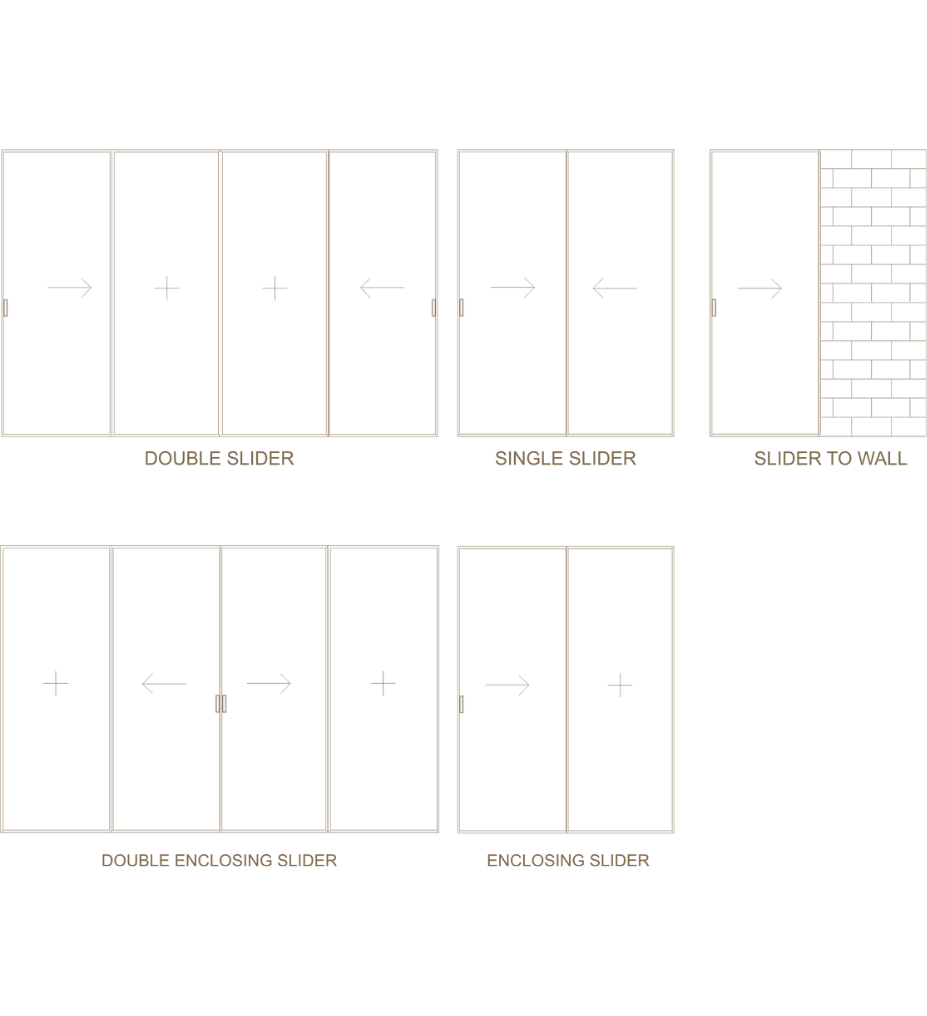

  • Versatility: Available in multiple configurations including Double Slider, Single Slider, Slider to Wall, Double Enclosing Slider, and Enclosing Slider.
  • Design Aesthetic: Features a minimalist 12 mm shutter face with a bottom barrier that floats on top of the floor.
  • Security: System is designed with a key lock available for increased security.

‍

Dimensions

  • Maximum Height: The system can reach a maximum height of 3660 mm.
  • Maximum Width: Each shutter supports a maximum width of 1500 mm.
  • Maximum Glass Thickness: Allows for the incorporation of glass up to 10.5 mm thick.
  • Weight Capacity: Each individual shutter is designed to support a weight capacity of 90 kg.
  • Profile Detail: Features a primary track width of 112 mm and a track height of 45 mm.

‍

Technical Specifications

  • Fabricator: Aarna.
  • Glass Compatibility: Supports a large variety of choices including tempered, laminated, and fabric glass.
  • Application: Designed with a simple architectural language for ease of placement in residential spaces.
  • Mechanism Type: Premium sliding system with integrated soft-close technology.
  • Installation: Features a barrier-free bottom for seamless integration into luxurious settings.

‍

Technical Diagram
