Aarna Väri

Residence Solutions

Description

Aarna Väri is a high-end flush door system designed as a "symphony of the door and the wall". It features a seamless design where both the door and the wall utilize the same material, allowing them to lie completely flushed on the same surface. This "invisible door" is demarcated only by a neat 20mm aluminum outline and a 3mm aluminum trim, making it a definitive choice for modern homes seeking a minimalist, integrated aesthetic.

Key Features

  • Aesthetic: Invisible door design with the door and wall lying flushed on the same surface.
  • Trimming: Features a seamless 3mm aluminum trim and a 20mm aluminum outline.
  • Versatility: Can be manufactured in multiple materials, including laminated glass, lacquered glass, and digital prints.
  • Hardware: Equipped with hidden concealed hinges and an available key lock.
  • System: Aarna Väri flush door and wall integration system.

Dimensions

  • Maximum Width: 900 mm.
  • Weight Capacity: Supports up to 100 kg.
  • Glass Thickness: Accommodates 4+4 mm laminated or lacquered glass.
  • Technical Profile: Features a primary frame width of 204.4 mm and a depth of 180 mm.
  • Maximum Height: 3000 mm.

Technical Specifications

  • Materials: Compatible with a wide range of surfaces like digital prints, lacquered, or laminated glass.
  • Hardware Type: Hidden concealed hinges for a seamless finish.
  • Mounting: Designed for flush mounting directly onto walls.
  • Application: Ideal for minimalist residential and upscale corporate interiors.
  • Fabricator: Aarna (Art-N-Glass Inc.).

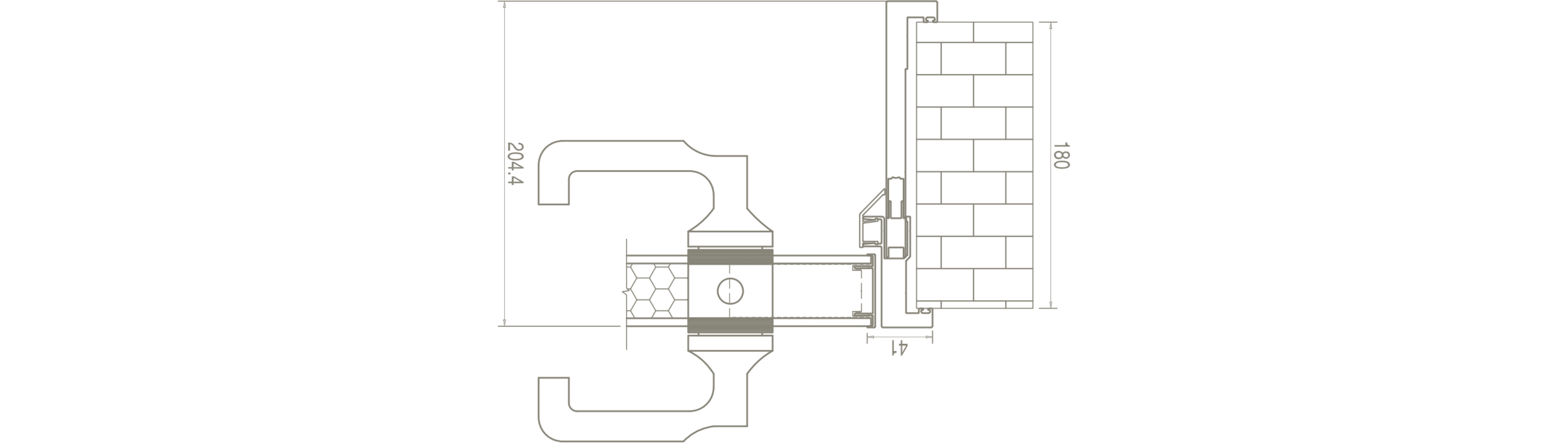

Technical Diagram
