AX-20 Georgian Bar

Office Solutions

Description

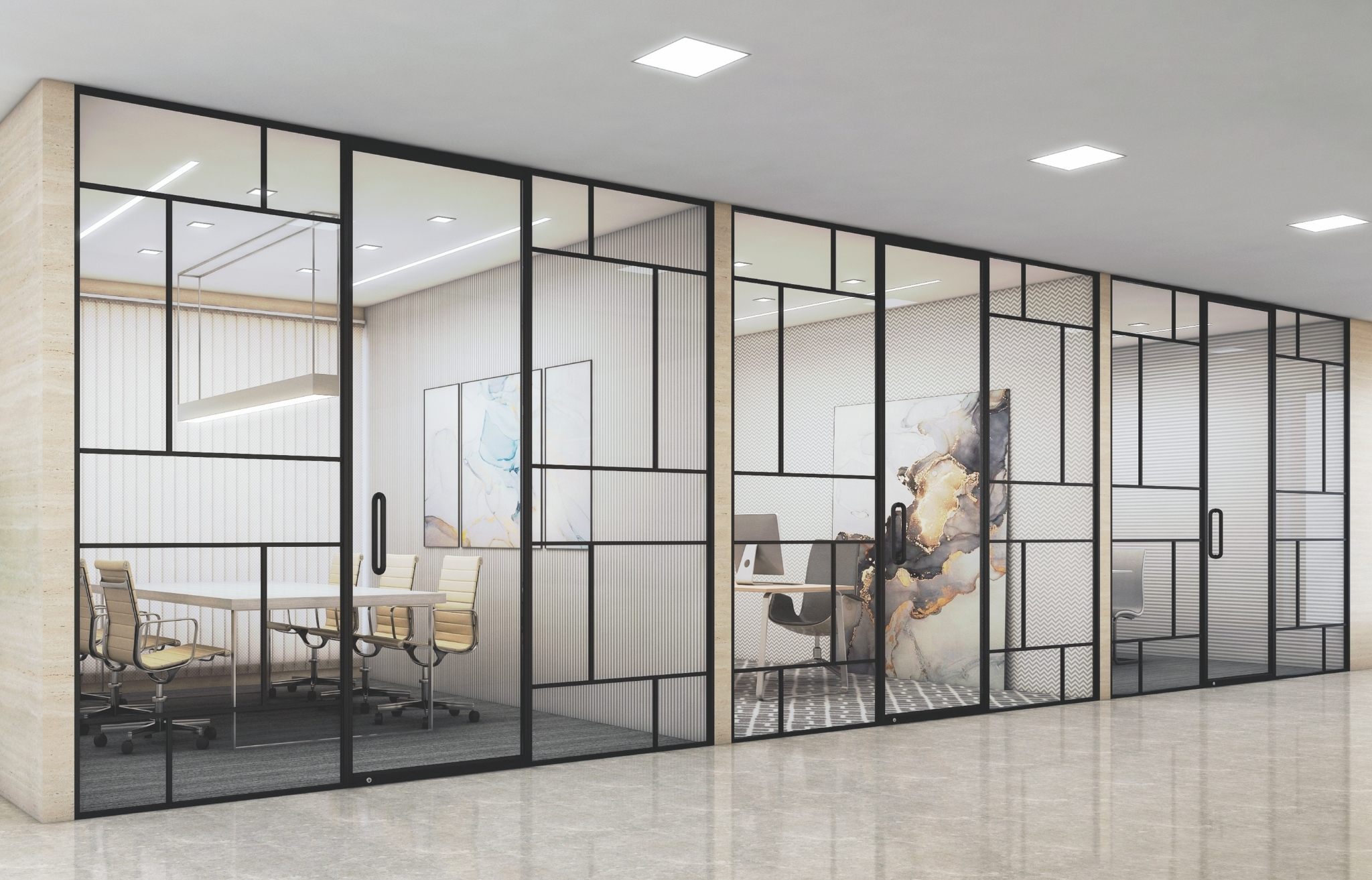

The AX-20 Georgian Bar system provides a pure and minimalist architectural look while incorporating traditional styling into modern glass partitions. Designed for full-height office spaces, it maximizes natural lighting to benefit employee wellness. The system features minimalist aluminum framing with junctions finished in powder coating or anodized aluminum, offering a refined, contemporary design for high-end office and living environments.

‍

Key Features

  • System: AX-20 Georgian Bar glass partition and door system.
  • Visual Identity: Combines minimalist transparency with distinctive Georgian bar detailing.
  • Wellness: Designed to flood work areas with natural light for a healthy office environment.
  • Finish Options: Choice of anodized aluminum or standard powder coating.
  • Aesthetic Choice: Offers over 16 exclusive color shades plus standard RAL options.

‍

Dimensions

  • Max Door Size: 1000 mm (Width) x 3000 mm (Height).
  • Max Fixed Panel Size: 1500 mm (Width) x 3000 mm (Height).
  • Door Glass Thickness: 8 mm.
  • Fixed Glass Thickness: 8 mm to 10 mm.
  • Partition Type: Full-height single glass partition with decorative bars.

‍

Technical Specifications

  • Fabricator: Axsys Solutions.
  • Primary Material: Anodized aluminum or refined powder-coated framework.
  • Acoustics: Intended for environments where specific acoustic performance is not required.
  • Glazing: Junctions managed through minimalist contemporary aluminum profiles.
  • Application: Premium office fittings and transparent residential partitions.

‍

Technical Diagram
