AX-20 Pivot Door

Office Solutions

Description

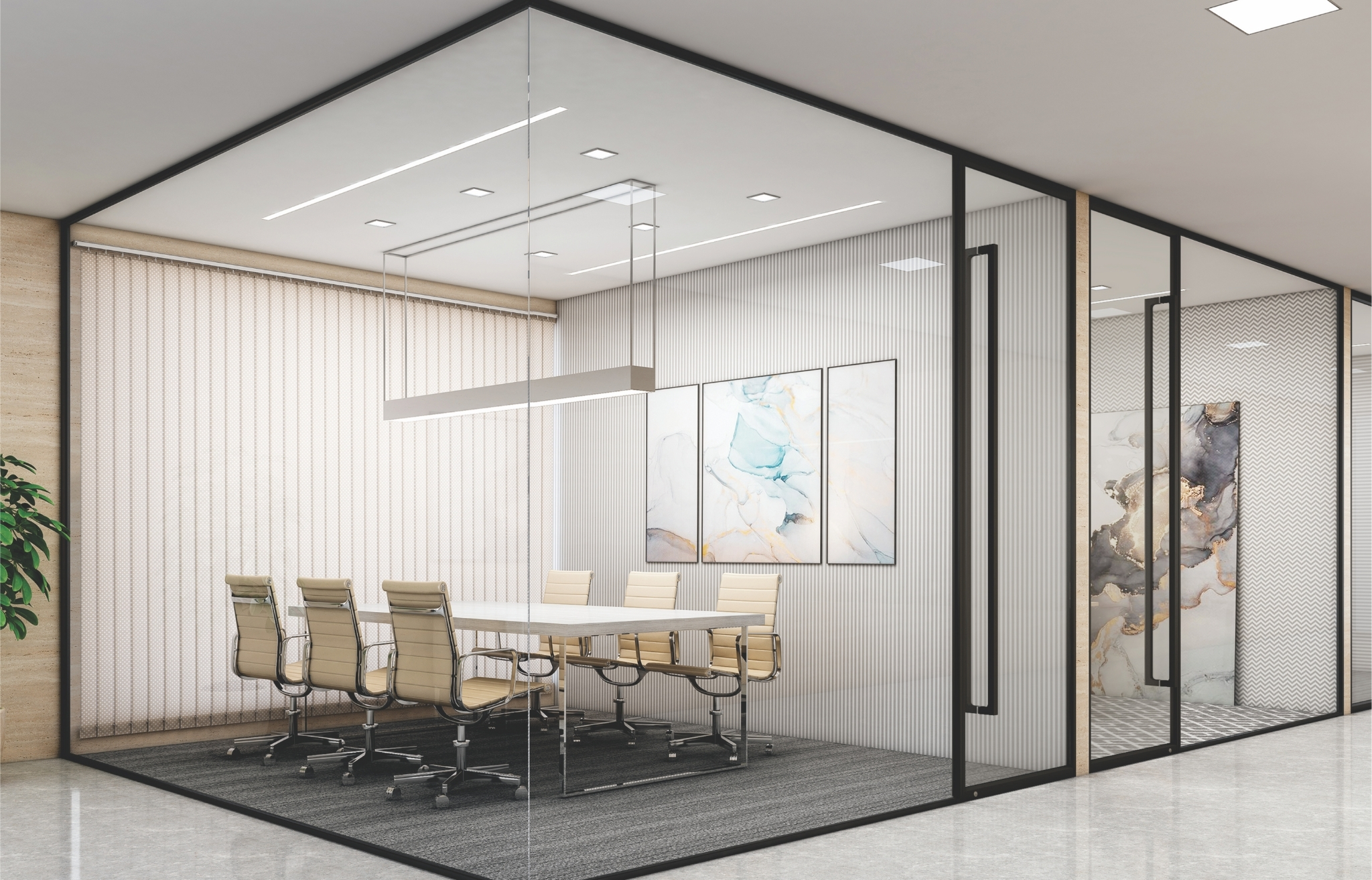

The AX-20 Pivot Door is a refined glass partition designed to give a minimalist look to living and office spaces. This full-height single glass office partition is intended for office spaces without acoustic requirements. Its junctions between glazing are completed with anodized aluminum or powder coating frames, providing a top-of-the-art contemporary design.

Key Features

  • Design: Refined minimalist aluminum framework.
  • Wellness: Increases natural lighting for employees.
  • Style: Pure and minimalist contemporary design.
  • Customization: Available in standard RAL and over 16 exclusive shades.
  • Partitioning: Designed as a full-height single glass office partition.

‍

Dimensions

  • Max Door Height: 3000 mm.
  • Max Door Width: 1000 mm.
  • Max Fixed Height: 3000 mm.
  • Max Fixed Width: 1500 mm.
  • Max Glass Thickness: 8 mm for the door and 8 to 10 mm for fixed panels.

‍

Technical Specifications

  • Frame Material: Anodized aluminum or powder coating.
  • Acoustics: No specific acoustic requirement needed.
  • Fabricator: Axsys Solutions.
  • Glazing Details: Minimalist junctions using refined aluminum framing.
  • Application: Ideal for modern office and residential partitions.

‍

Technical Diagram
