AX-30 Frameless Door

Office Solutions

Description

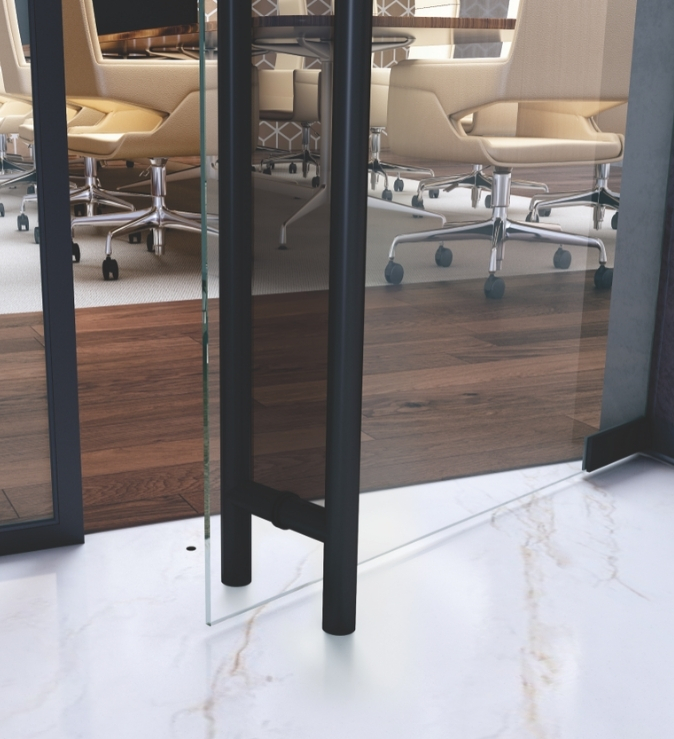

AX-30 Frameless Door is a top-of-the-art contemporary glass office partition designed to the absolute minimum for a pure look. This fully height single glass system maximizes natural lighting in workspaces to promote employee wellness. Featuring a refined minimalist aluminum framework with anodized or powder-coated finishes, it is perfectly suited for high-end office environments without specific acoustic requirements.

‍

Key Features

  • System: AX-30 Frameless glass partition and door system.
  • Application: Ideal for single glass office partitions and modern living spaces.
  • Framework: Refined minimalist aluminum framework for a contemporary aesthetic.
  • Wellness: Increases natural lighting to enhance employee health and productivity.
  • Finish: Junctions finished with anodized aluminum or standard RAL powder coating.

‍

Dimensions

  • Max Door Height: 3000 mm.
  • Max Door Width: 1200 mm.
  • Max Fixed Height: 3000 mm.
  • Max Fixed Width: 1500 mm.
  • Glass Thickness: 12 mm for doors; 10 to 12 mm for fixed panels.

‍

Technical Specifications

  • Fabricator: Axsys Solutions.
  • Primary Material: High-grade Anodized or Powder Coated Aluminum.
  • Junctions: Glazing junctions are completed with minimalist aluminum framing.
  • Acoustics: Suitable for fittings where no specific acoustic rating is required.
  • Color Options: Supports standard RAL shades and 16+ exclusive custom colors.

‍

Technical Diagram
