AX-20 Fixed Partition

Shower cubicles

Description

The AARNA AX20 is a versatile aluminum system designed primarily as a shower door and casement window/door solution by Axsys Solutions. It features a robust profile capable of accommodating significant heights and various opening configurations, including fixed windows, casement doors, and options with fly mesh. The system is engineered for integration with floor springs and nylon rollers for smooth operation.

‍

Key Features

  • System: AARNA AX20 Shower Door Series.
  • Configurations: Supports multiple layouts including Fixed Window, Single/Double Leaf Casement Doors, and Casement Windows.
  • Specialized Options: Available with Fly Mesh integration and Fixed Windows with Mullions.
  • Components: Includes Outer Frame Profile, Beading, Sash Profile, and dedicated Handle designs.

    • ‍

    Dimensions

    Maximum Height: 3200 mm.

    Maximum Width: 2000 mm.

    Profile Dimensions:

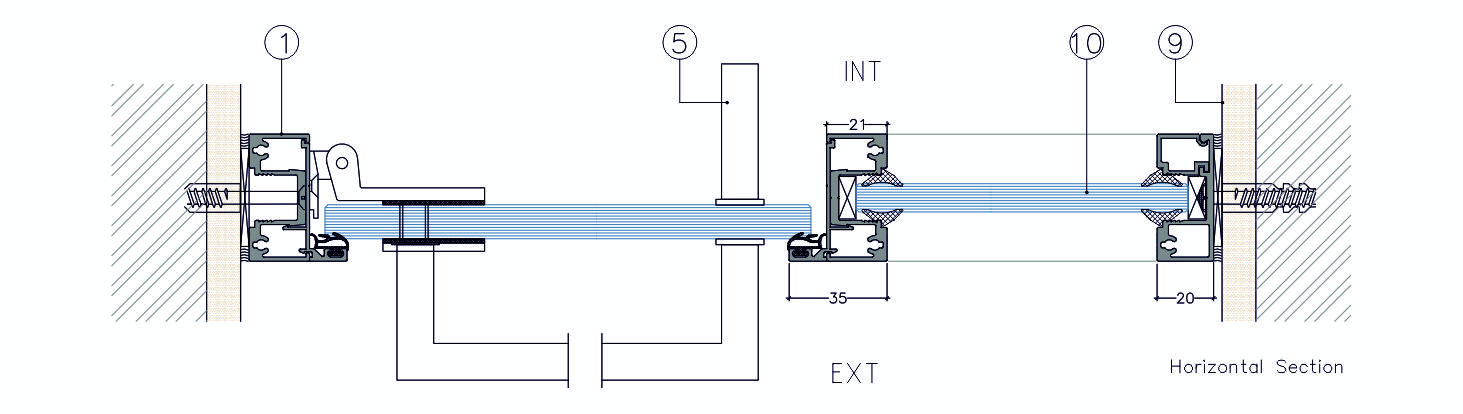

    Frame Depth: 35 mm (indicated in Horizontal Section).

    nterior Frame Width: 21 mm.

    Wall/Frame Connection gap: 20 mm.

    ‍

    Technical Specifications

  • Fabricator: Axsys Solutions.
  • Glazing Thickness: Accommodates glass from 6mm to 12mm.
  • Hardware Compatibility: Designed for use with Floor Springs and Nylon Rollers.
  • Installation: Suitable for installation with standard floor and ceiling finishes, with specific detailing for vertical wall finishes.

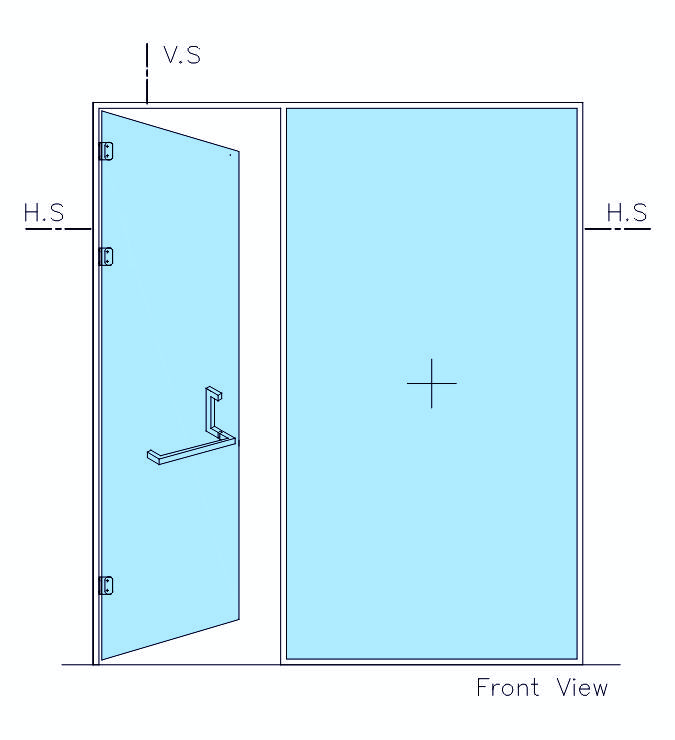

  • Views Provided: Vertical Section, Horizontal Section, and Front View.

    • ‍

    ‍

    Technical Diagram
