Ultralux - 20F Floating Cubicle

Shower Cubicles

Description

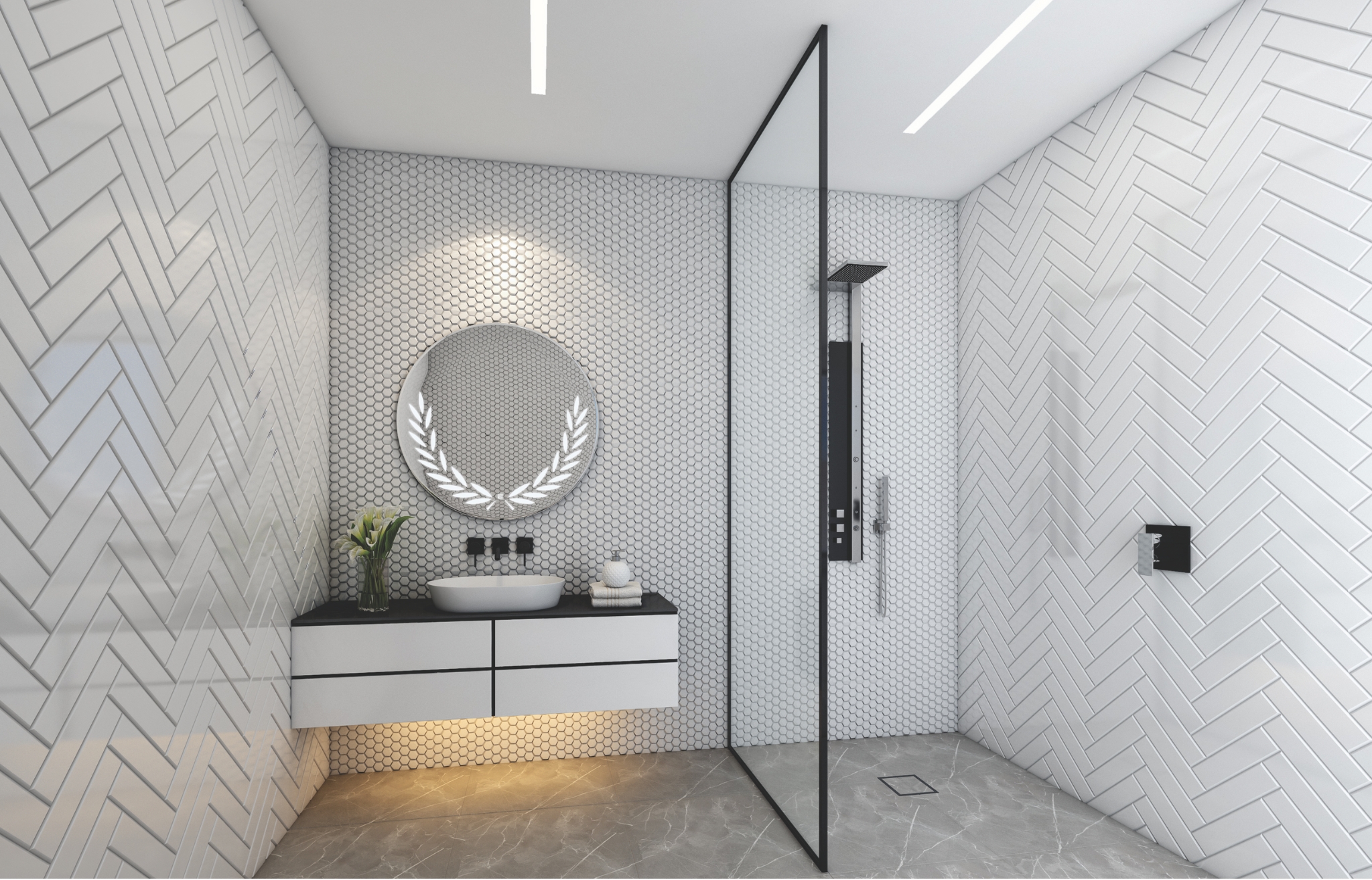

Ultralux - 20F is a "floating cubicle" system that has created a global niche by offering a light and airy ambiance perfect for small or minimalist spaces. Designed with a frame less than one inch thick, it provides a perfect border for clear or custom glass. By removing complex moving components and hardware, it offers a simple, timeless solution that is easily adaptable to any architectural design.

‍

Key Features

  • System: Ultralux - 20F Floating Cubicle system.
  • Design Philosophy: Minimalist "no-brainer" design that removes technical moving components.
  • Ambience: Creates a light and airy feel, ideal for spaces demanding high minimalism.
  • Finishes: Available in both Matt and Glossy finished color options (AC-12, AC-02, AC-06, AC-10).
  • Versatility: Suitable for almost every space design, from small areas to large architectural projects.

‍

Dimensions

  • Maximum Height: 3200 mm.
  • Maximum Width: 3000 mm.
  • Profile Width: 32 mm to 45 mm.
  • Glass Thickness: Compatible with 8 mm glass.
  • Visible Outline: Features a consistent 20 mm border outline.

‍

Technical Specifications

  • Product Type: Floating Glass Cubicle.
  • Glass Options: Works with clear glass or any other glass of choice.
  • Finish Variants: Offered in four distinct shades: AC-12, AC-02, AC-06, and AC-10.
  • Hardware: Simplified design with no complex moving technical hardware.
  • Application: Designed for both small spaces and large-scale minimalist architecture.

‍

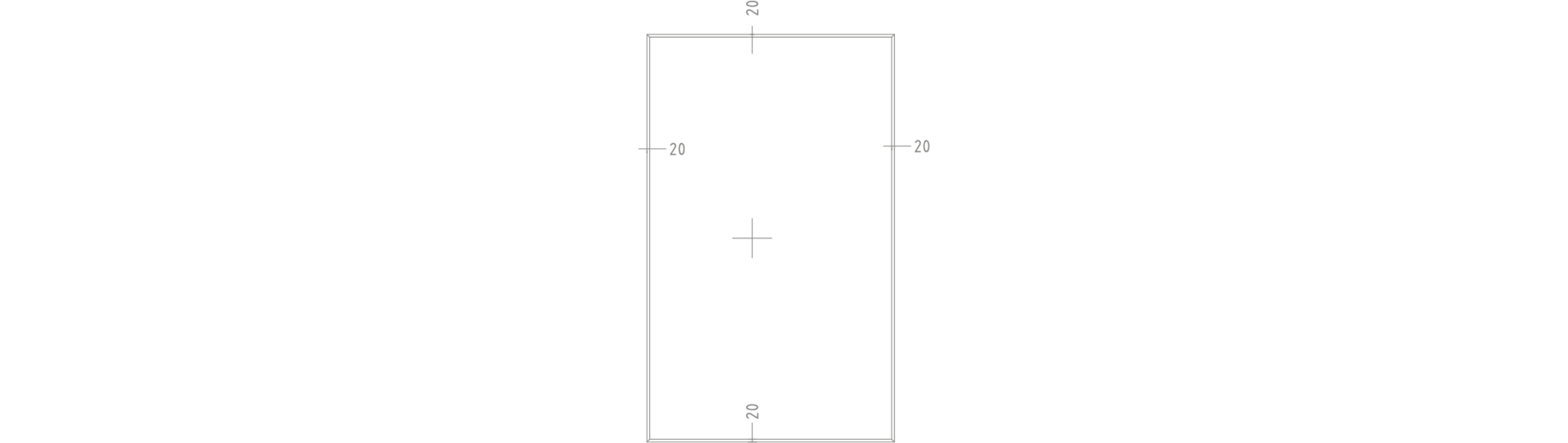

Technical Diagram
