Ultralux-D90 Framed Cubicle

Shower Cubicles

Description

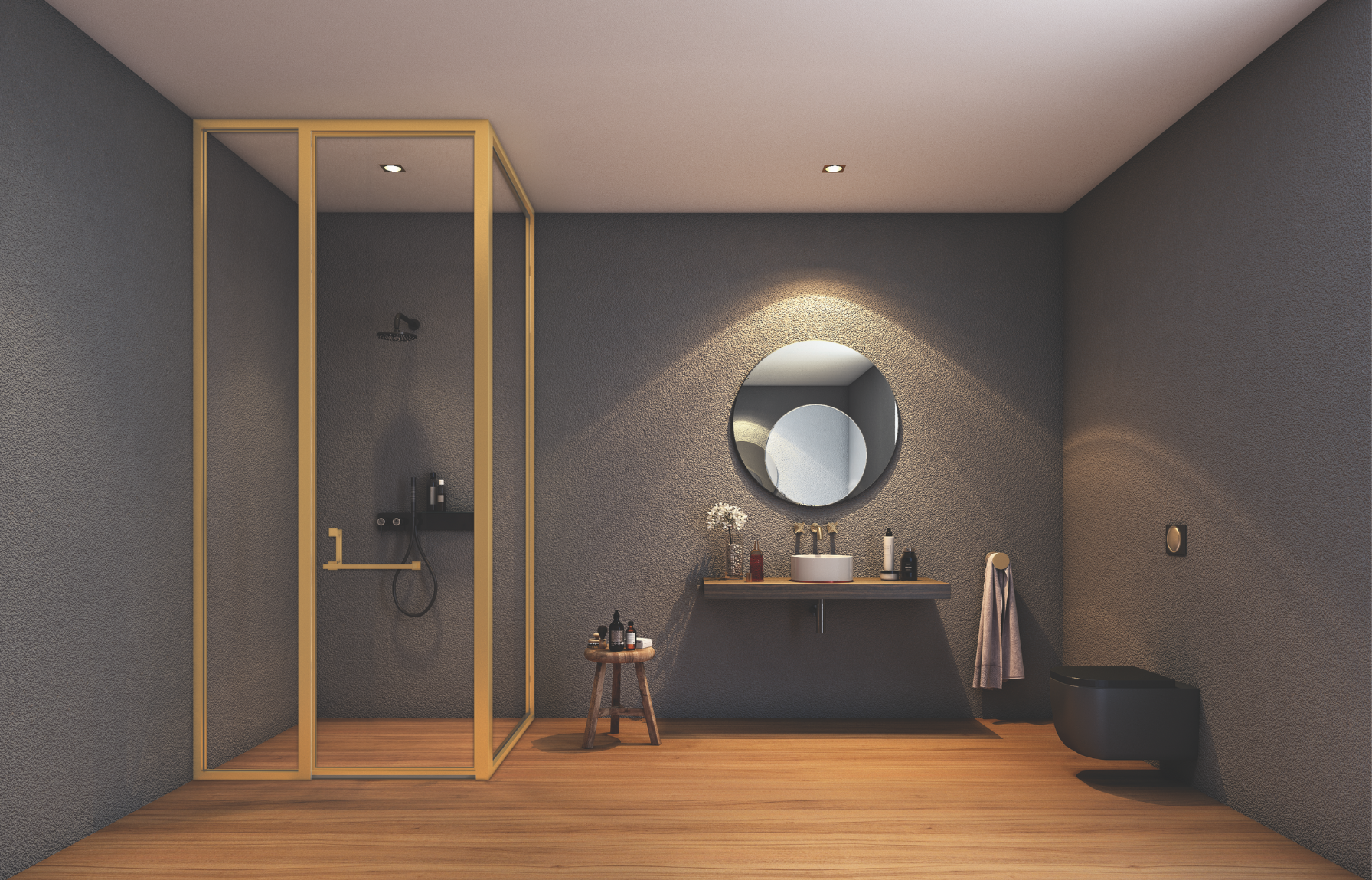

Ultralux cubicles are a totally modern take on older cubicle designs with absolutely no competition, as the entire periphery shows no visible hardware. This modern beauty can be made more than 10 feet high and creates breathtaking spaces in the most personal area of your house—the bathroom. The system features a magnetic interlock that closes the door shut completely, along with concealed water seals for a perfectly seamless and watertight experience.

Key Features

  • System: Ultralux-D90 premium framed cubicle system.
  • Design Purity: No visible hardware across the entire aluminium periphery.
  • Visual Profile: Outer periphery is 32 mm, while the door shutter features a solid aluminium periphery of 16 mm.
  • Customization: Available in more than 20 different shades to match any bathroom interior.
  • Closure: Equipped with a magnetic interlock for a secure, complete door shut.

‍

Dimensions

  • Maximum Height: 3200 mm (capable of exceeding 10 feet).
  • Maximum Width: 3000 mm.
  • Profile Width: 32 mm to 45 mm.
  • Glass Thickness: Compatible with 8 mm safety glass.
  • Handle Options: Features four distinct handle types, including L-shaped and recessed profiles.

‍

Technical Specifications

  • Product Type: Framed Glass Cubicle.
  • Materials: High-grade aluminium periphery with concealed technical hardware.
  • Finish Variants: Offered in Matt and Glossy options, including AC-12, AC-02, AC-06, and AC-10.
  • Water Management: Includes concealed water seals both below the door and in the side.

‍

Technical Diagram
