AX-20

Doors & Windows

Description

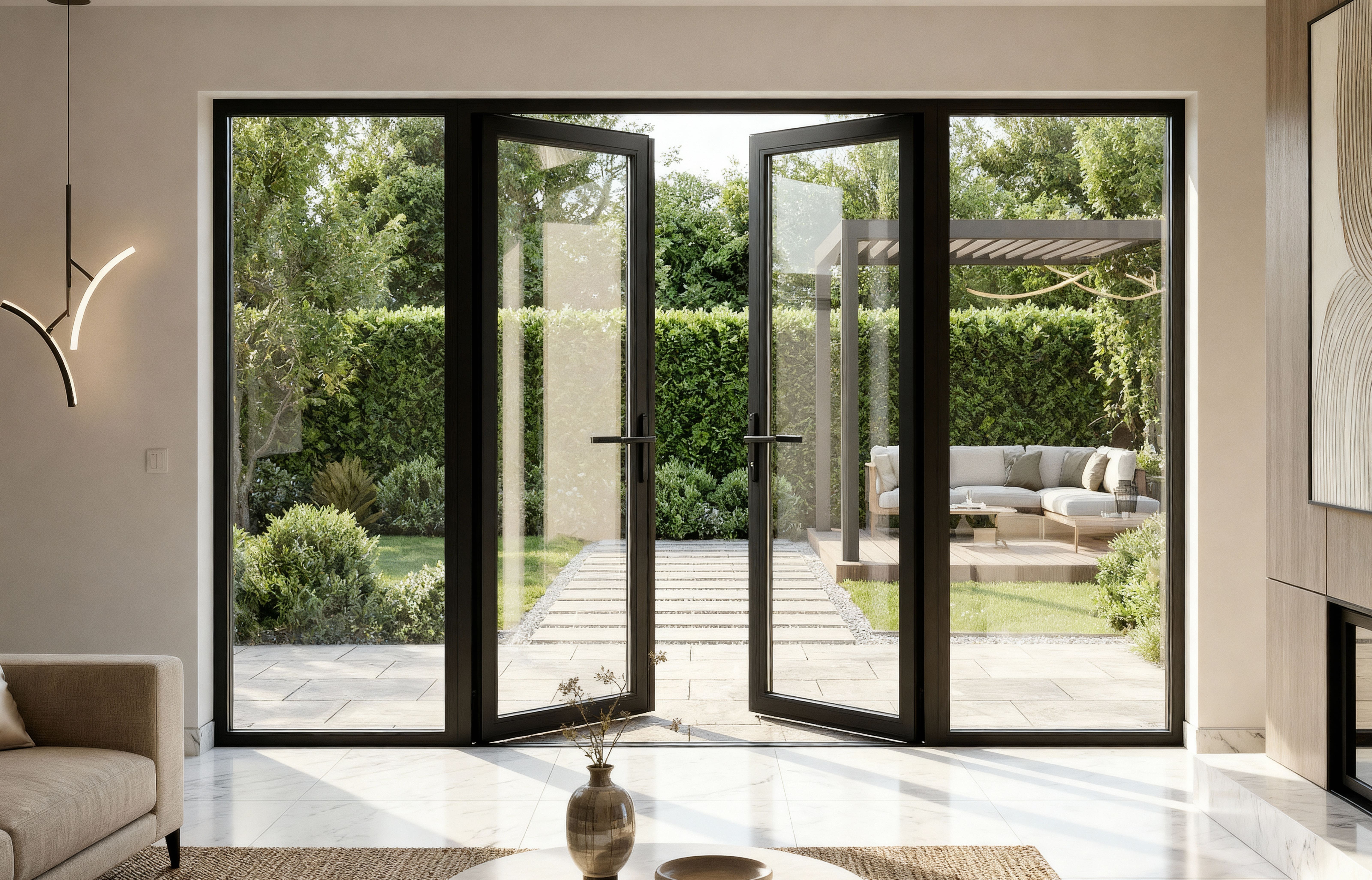

AX 20 is an aluminum door and partition system fabricated by Axsys Solutions. Designed for architectural applications, it features versatile configurations including single swing doors, fixed windows, and expansive double-door partitions with fixed side panels. The system integrates structural stability with 50x50mm aluminum tube profiles and can be reinforced with MS tubes for wider spans.

Key Features

  • System: Alliance Ax 20 Aluminum Fabricated System.
  • Application: Hinged/Swing Door combined with Fixed Glass Partitions.
  • Structural Profile: 50x50mm Aluminum Tube framework.
  • Profile Face Width: 45 mm frame section.
  • Reinforcement: Compatible with 50x50mm MS Tube support (for larger openings).

    • ‍

    Dimensions

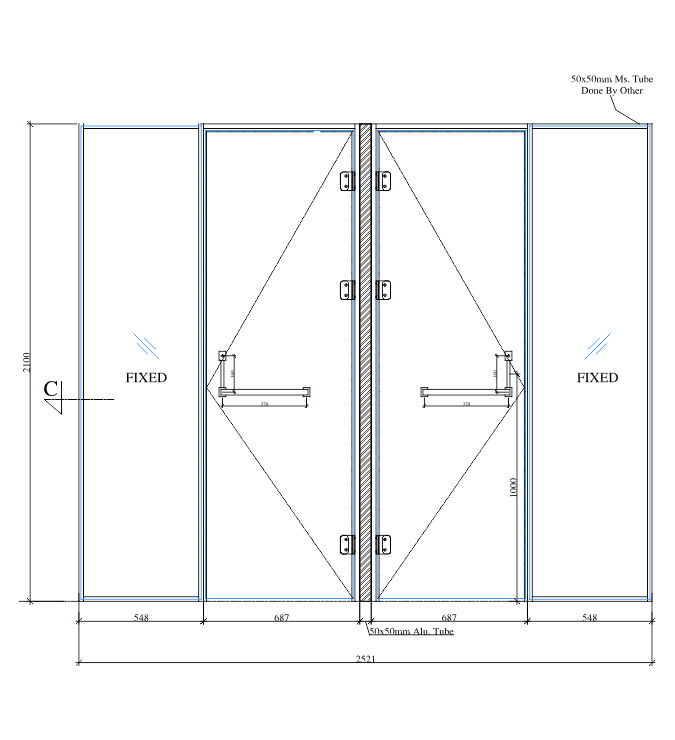

  • Door Module Size (Single): 700 mm x 2100 mm.
  • Door Leaf Width (Double Config): 687 mm.
  • Fixed Panel Width: 548 mm.
  • Total Span (4-Panel Config): 2521 mm x 2100 mm.
  • Threshold/Clearance: 12 mm.

    • ‍

    Technical Specifications

  • Fabricator: Axsys Solutions.
  • Primary Material: Aluminum.
  • Hardware: Linear horizontal bar handles and side-mounted hinges [Visuals Page 1 & 3].
  • Structural Support: 50x50mm Aluminum Tube (Standard) / 50x50mm MS Tube (Done by Other for structural needs).
  • Glazing: Full-height fixed and active sash glazing

    • ‍

    Description

    AX 20 is an aluminum door and partition system fabricated by Axsys Solutions. Designed for architectural applications, it features versatile configurations including single swing doors, fixed windows, and expansive double-door partitions with fixed side panels. The system integrates structural stability with 50x50mm aluminum tube profiles and can be reinforced with MS tubes for wider spans.

    Key Features

  • System: Alliance Ax 20 Aluminum Fabricated System.
  • Application: Hinged/Swing Door combined with Fixed Glass Partitions.
  • Structural Profile: 50x50mm Aluminum Tube framework.
  • Profile Face Width: 45 mm frame section.
  • Reinforcement: Compatible with 50x50mm MS Tube support (for larger openings).

    • ‍

    Dimensions

  • Door Module Size (Single): 700 mm x 2100 mm.
  • Door Leaf Width (Double Config): 687 mm.
  • Fixed Panel Width: 548 mm.
  • Total Span (4-Panel Config): 2521 mm x 2100 mm.
  • Threshold/Clearance: 12 mm.

    • ‍

    Technical Specifications

  • Fabricator: Axsys Solutions.
  • Primary Material: Aluminum.
  • Hardware: Linear horizontal bar handles and side-mounted hinges [Visuals Page 1 & 3].
  • Structural Support: 50x50mm Aluminum Tube (Standard) / 50x50mm MS Tube (Done by Other for structural needs).
  • Glazing: Full-height fixed and active sash glazing

    • ‍

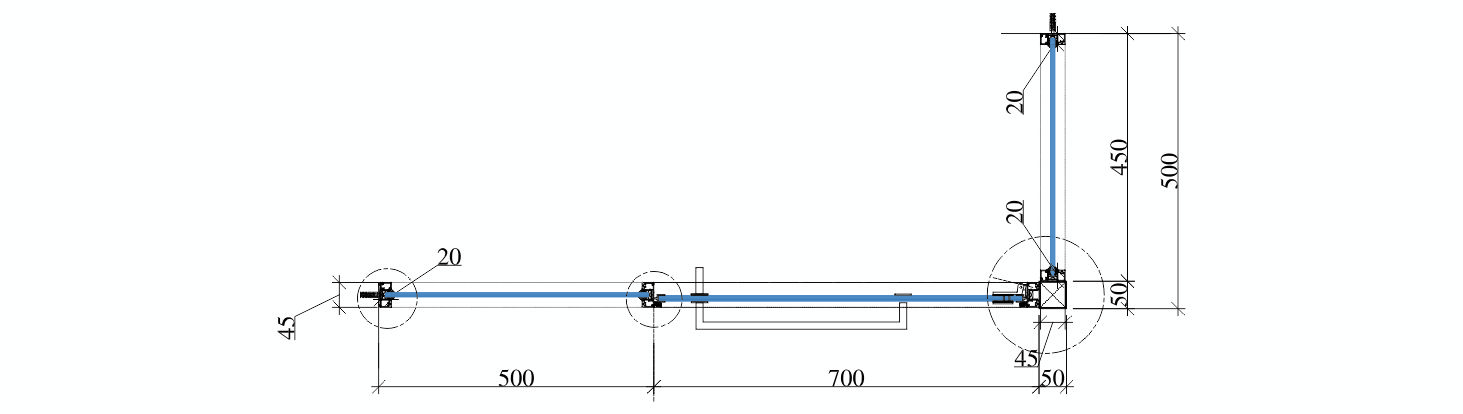

    Technical Diagram
