F-50

Windows

Description

Alliance Facade F50 is a rigorously engineered curtain wall system designed for continuous glazing with absolute visual uniformity. Unlike structural glazing that relies on silicone adhesion, F50 is a mechanically retained system using pressure plates for predictable, long-term safety. With a disciplined 50 mm face width across all members, it offers the clean, ordered aesthetic preferred by architects who value material honesty.

Key Features

  • Uniform 50 mm face width (Frame / Mullion / Transom)
  • Mechanically retained system; structural loads transferred through aluminium, not silicone
  • Custom-developed alloy balances high strength with malleability for curves

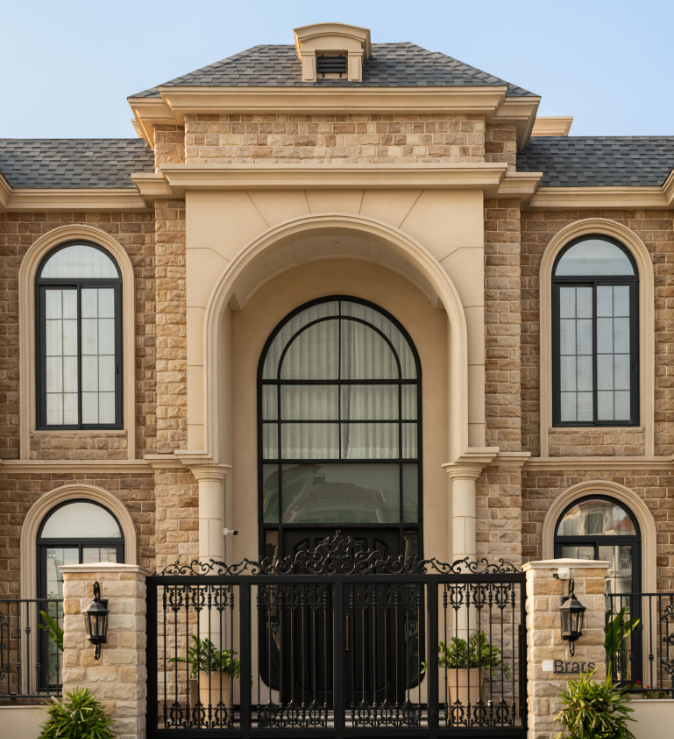

  • Capable of executing arches, shaped elevations, and non-linear geometries
  • High-performance pressure plates with color-matched cover plates
  • Predictable, inspectable, and serviceable performance

    • ‍

    Dimensions

  • Maximum unsupported height: 4.5 meters (can exceed with structural support)
  • Face width: 50 mm constant
  • Custom spans available with MS/Civil integration

    • ‍

    Technical Specifications

  • Glass thickness: Up to and beyond 50 mm
  • Glazing Method: Pressure plates with high-performance gaskets
  • Material: Proprietary alloy for stress resistance during shaping

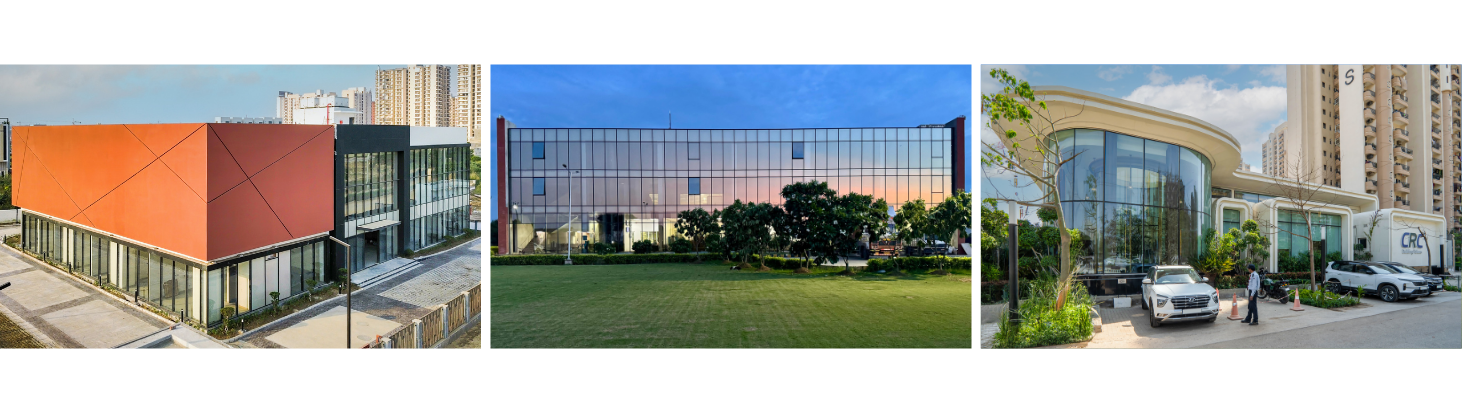

  • Application: Complex facades, curved elevations, and continuous glazing

    • ‍

    Description

    Alliance Facade F50 is a rigorously engineered curtain wall system designed for continuous glazing with absolute visual uniformity. Unlike structural glazing that relies on silicone adhesion, F50 is a mechanically retained system using pressure plates for predictable, long-term safety. With a disciplined 50 mm face width across all members, it offers the clean, ordered aesthetic preferred by architects who value material honesty.

    Key Features

  • Uniform 50 mm face width (Frame / Mullion / Transom)
  • Mechanically retained system; structural loads transferred through aluminium, not silicone
  • Custom-developed alloy balances high strength with malleability for curves
  • Capable of executing arches, shaped elevations, and non-linear geometries
  • High-performance pressure plates with color-matched cover plates
  • Predictable, inspectable, and serviceable performance

    • ‍

    Dimensions

  • Maximum unsupported height: 4.5 meters (can exceed with structural support)
  • Face width: 50 mm constant
  • Custom spans available with MS/Civil integration

    • ‍

    Technical Specifications

  • Glass thickness: Up to and beyond 50 mm
  • Glazing Method: Pressure plates with high-performance gaskets
  • Material: Proprietary alloy for stress resistance during shaping
  • Application: Complex facades, curved elevations, and continuous glazing

    • ‍

    Technical Diagram
