Viewline-150

Aluminum

Description

Viewline 150 is a unique all-aluminum railing system designed to outperform traditional baluster railings. This non-corrosive system offers a quirky yet functional aesthetic, featuring a signature 6-inch flat top rail that is excellent for leaning or utility during social events. With the ability to stand 1200mm tall and withstand heavy wind loads, it provides modern finesse through crisp 20mm lines and beautiful mitre joints.

Key Features

  • System: Viewline 150 All-Aluminum Railing System.
  • Application: Suitable for commercial and residential use, featured in projects like Essel Platina.
  • Durability: Fabricated from aluminum that will not corrode over time.
  • Functional Design: Offers a 6-inch flat top rail designed for both leaning and convenience.
  • Structural Integrity: Capable of standing 1200mm tall with a 3 kpa wind load capacity.

‍

Dimensions

  • Standard Height: 1200 mm.

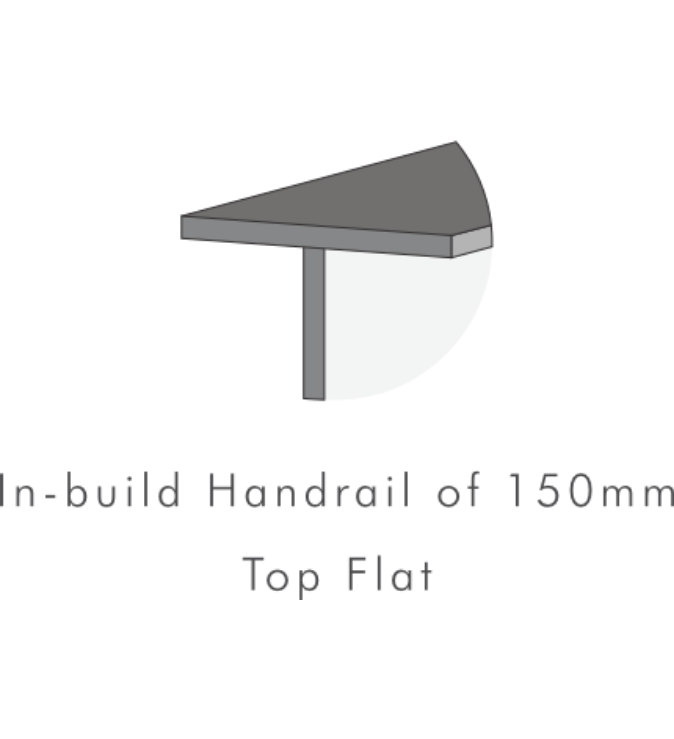

  • Handrail Width: 150 mm (6-inch flat top).
  • Front Line Profile: Crisp 20 mm lines across the vertical or horizontal sections.
  • Glass Compatibility: Supports Laminated and Tempered Laminated 6+6 / 8+8 / 8 / 10 mm glass.
  • Detailing: Features high-finesse mitre joints for a polished finish.

‍

Technical Specifications

  • Fabricator: Viewline.
  • Primary Material: Powder Coated 6063 Aluminum.
  • Finish: Wide range of RAL color options available.
  • Installation: Optimal for both indoor and outdoor environments.
  • Hardware: Integrated Level-in Glass Leveling Device for perfect structural alignment.

‍

Technical Diagram
