Module-VH150

Aluminum

Description

Module 150 is a "Lego-like" modular railing system allowing for continuous, weld-free connections across any project space. The 150 mm flat top makes it perfect for use as a counter or leaning ledge. The 150VH variant expands this plug-n-play system with vertical/horizontal louvres and meshes, providing an extraordinary uplift to project elevations.

Key Features

  • System: Module 150 / 150VH Lego-like Modular Railing System.
  • Technology: Weld-free connection of individual modules for a pristine finish.
  • Project Reference: Utilized in high-end projects like Jewel of India - Jaipur.
  • Versatility: Incorporates glass, louvres (Box, Z, Y types), and expandable meshes.
  • Resilience: Capable of withstanding a wind load capacity of 2 kpa.

‍

Dimensions

  • Module Height: Standard modules can be 1100 mm high.

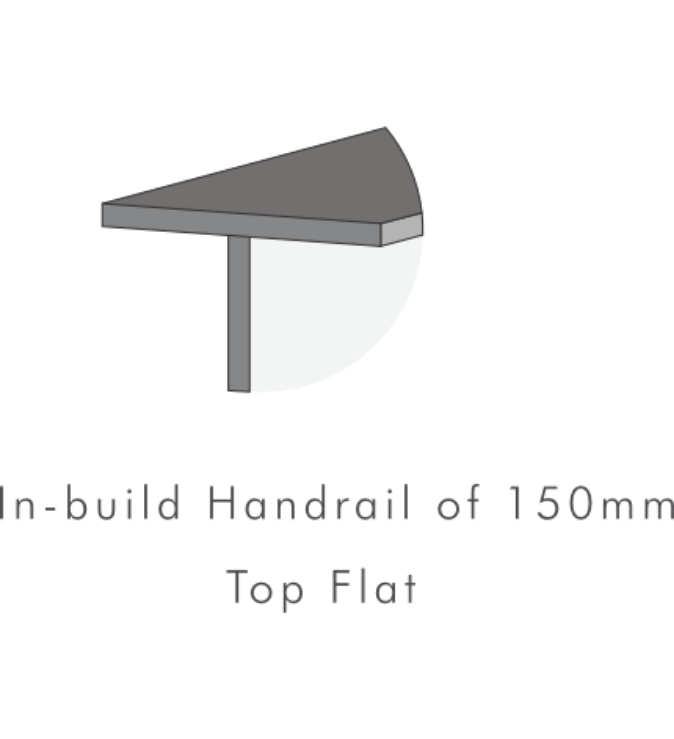

  • Handrail Width: In-build handrail featuring a 150 mm flat top.
  • Louvre Options: Choice of Box type, Z type, and Y type louvres.
  • Configuration: Scalable plug-n-play design for vertical or horizontal lines.
  • Glass Thickness: Compatible with Laminated and Tempered Laminated 6+6 / 8+8 / 8 / 10 mm.

‍

Technical Specifications

  • Fabricator: Artrail.
  • Primary Material: Powder Coated 6063 Aluminum.
  • Finish: Pristine finish available in standard RAL colors.
  • Application: Designed for commercial and residential indoor/outdoor use.
  • Hardware: Features a Level-in Glass Levelling Device for structural stability.

‍

Technical Diagram
