F-32

Curtain Wall

Description

Alliance Facade F32 is the system that redefined our brand as a global-grade facade leader. Widely regarded as the world’s slimmest curtain wall system, it combines a delicate 32 mm face width with the structural capacity of a heavy-duty system. Engineered from T6063 special-grade alloy, it handles extreme wind loads and monumental heights with absolute confidence, offering a rare balance of visual delicacy and structural dominance.

Key Features

  • World-leading ultra-slim 32 mm uniform face width (Mullion/Transom)
  • Engineered for monumental unsupported heights up to 6 meters
  • T6063 special-grade alloy for extreme structural performance
  • Flush bottom profile integration for seamless floor-level visuals
  • Available in Standard (up to 4.5m) and Deep Structural (up to 6m) sections
  • Mechanically retained system for safety and predictability

    • ‍

    Dimensions

  • Face width: 32 mm (Constant)
  • Maximum unsupported height: 6000 mm (20 ft)
  • Section Depth: Variable based on structural load

    • ‍

    Technical Specifications

  • Glass thickness: > 50 mm capacity
  • Material: High-strength T6063 Aluminium Alloy
  • Structural Logic: High inertia deep sections for extreme wind loads
  • Application: High-rise luxury commercial and residential towers

    • ‍

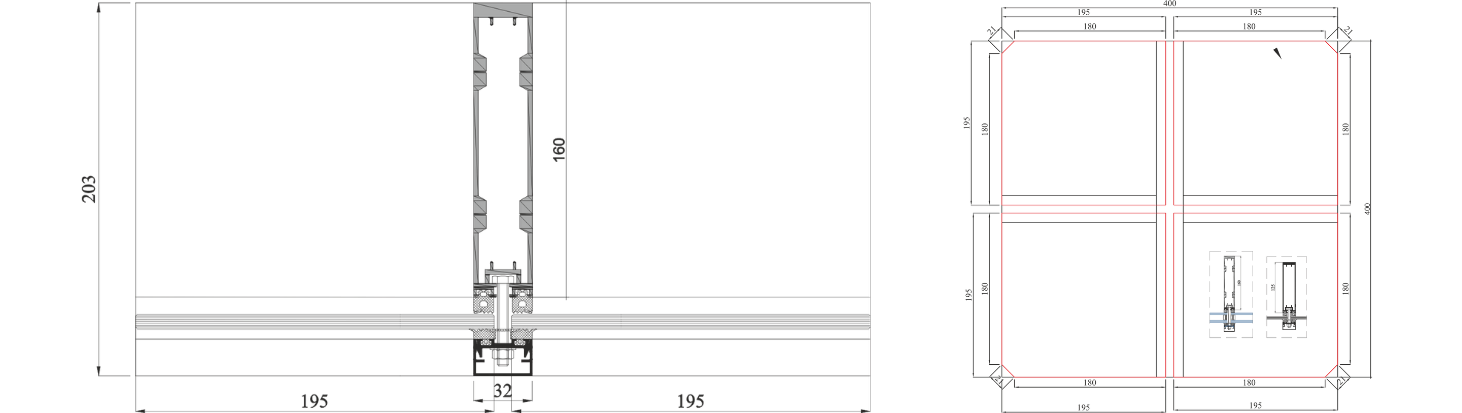

    Technical Diagram
