Fully Unitised System 3

Unitised

Description

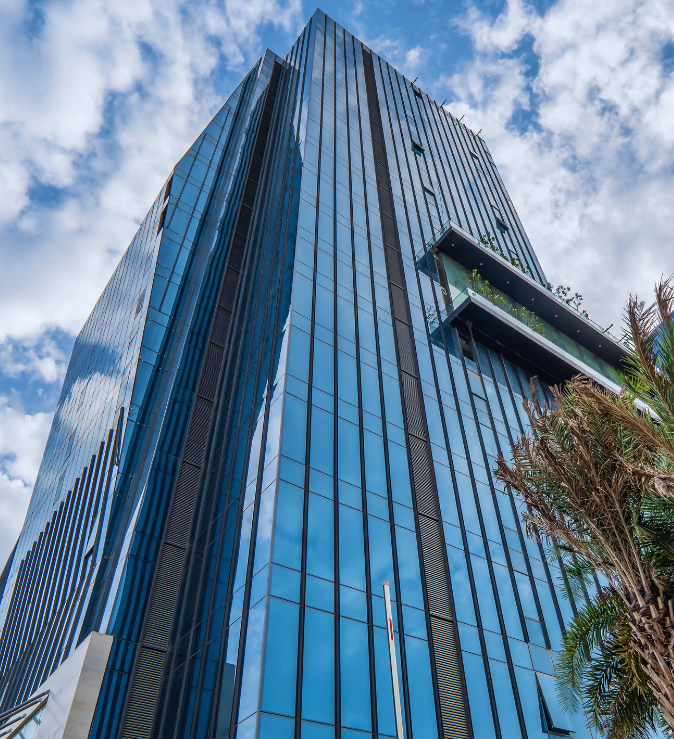

Fully Unitised System is the gold standard for high-rise facade construction. Unlike stick systems, every panel is fully assembled, glazed, and sealed in a controlled factory environment before reaching the site. This "off-site manufacturing" approach ensures zero-defect quality, superior weather tightness, and rapid installation speeds, making it the only viable choice for towers where schedule and performance are critical.

Key Features

  • Factory-Controlled Quality: Complete assembly and glazing occur off-site, eliminating site-based errors.
  • Rapid Installation: Panels are hooked onto anchors instantly; no external scaffolding required.
  • Advanced Weather Performance: Features a "pressure-equalized" rain screen principle with triple-layer sealing.
  • Seismic & Movement Capability: Split-mullion "stack joint" design absorbs high inter-story drifts and wind loads.
  • Acoustic Superiority: Factory-sealed units deliver higher sound insulation ratings than site-glazed systems.
  • Architectural Versatility: Capable of integrating stone, ACP, fins, and louvers into the single unit frame.

    • Dimensions

  • Module Width: Optimized to glass yield (typically 1200mm - 1500mm).
  • Spans: Single unit spans full floor-to-floor height (up to 4200mm+).

    • Technical Specifications

  • Glazing Capacity: High-performance DGU/TGU (28mm – 50mm+).
  • System Type: Fully Unitized (Split Mullion / Split Transom).
  • Water Tightness: Highest class rating due to pressure equalization.

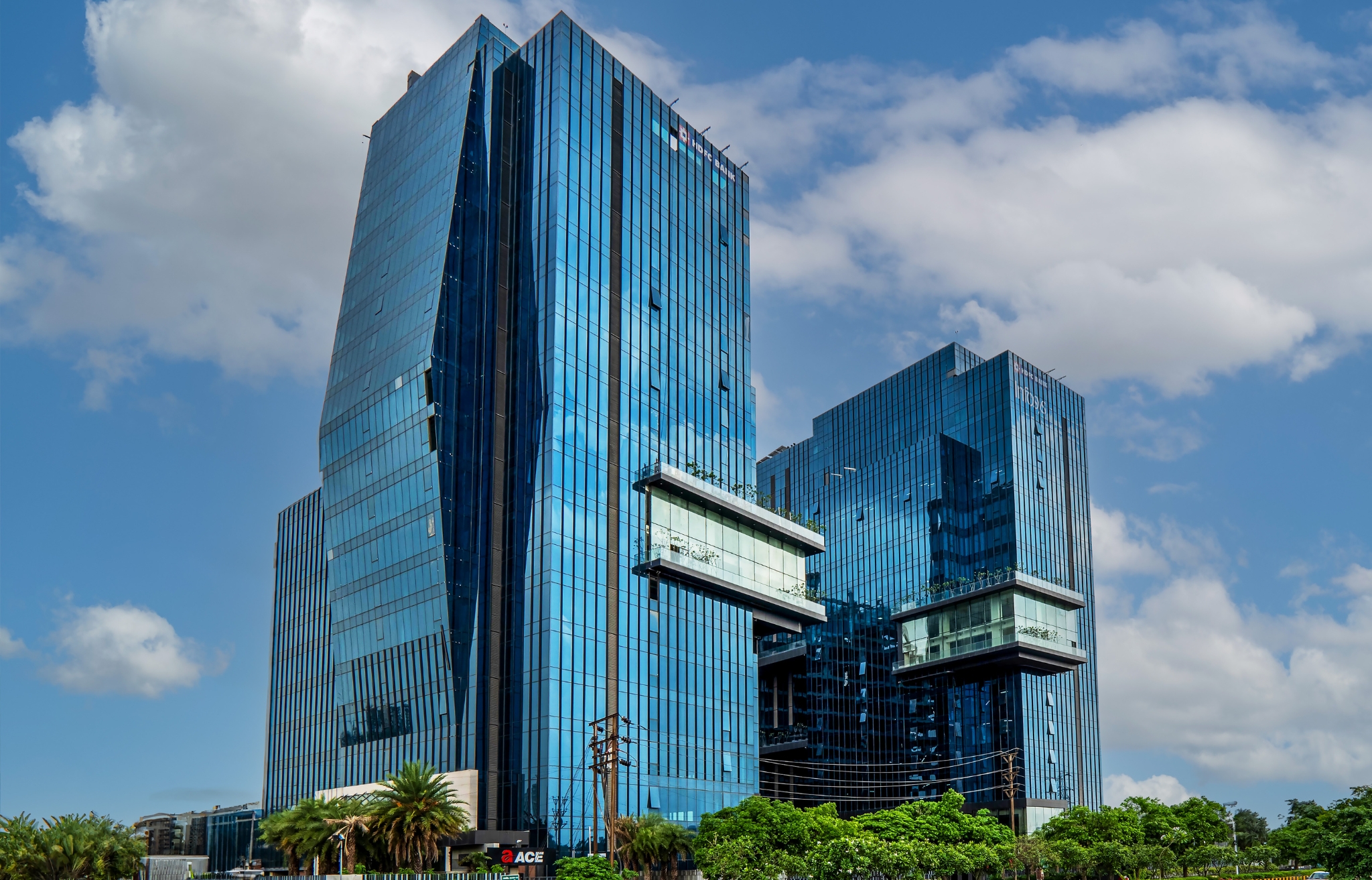

  • Application: High-rise towers, hotels, and projects with tight construction schedules.

    • Technical Diagram
