AX 163

Manual

Description

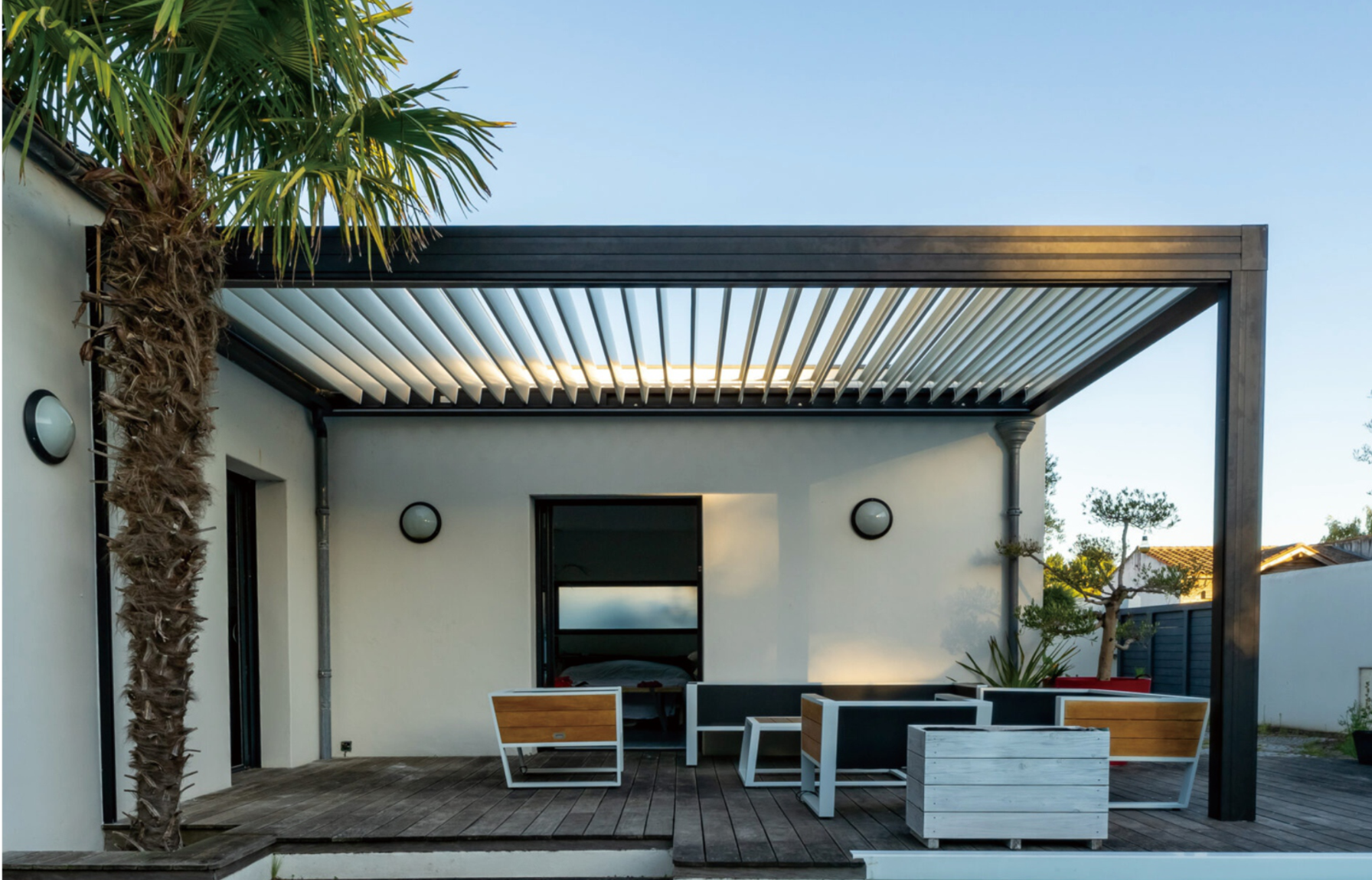

The AX 163 is designed to pursue the highest realm of life aesthetics, deducing the essence of taste through a frank and rigorous design style. It features accurate craft expression to create a unique modern style suitable for high-end residential and commercial environments. This system provides a high-quality independent space, whether installed in a yard, by a swimming pool, or at a seaside location.

Key Features

  • Blade Rotation: Remote-controlled motorized blades can be rotated from 0 to 140 degrees to adjust light and ventilation.
  • Weather Protection: Provides full sunshade, heat insulation, and dimming; the system becomes completely waterproof when closed.
  • Water Management: Integrated with a full and complete water drainage system.
  • Ambient Lighting: Equipped with an integrated LED lighting system to create a comfortable outdoor atmosphere.
  • Customization: Optional screen or glass doors can be added to the structure to block wind and rain.
  • Appearance: Features an exquisite appearance with a structural design adaptable to various installation conditions.

‍

Dimensions

  • Standard Sizes (Louver*Pivot): Available in 3000mm*3000mm and 4000mm*4000mm.
  • Standard Height: 2800 mm.

‍

Technical Specifications

  • Material: Constructed from high-quality 6063-T5 aluminum alloy.
  • Control System: Operated via Remote Control for motorized blade adjustment.
  • Available Colors: Offered in Dark Grey, Brown, and White.
  • Application: Suitable for increase in commercial use and residential areas like villa sunrooms or high-end apartments.

‍

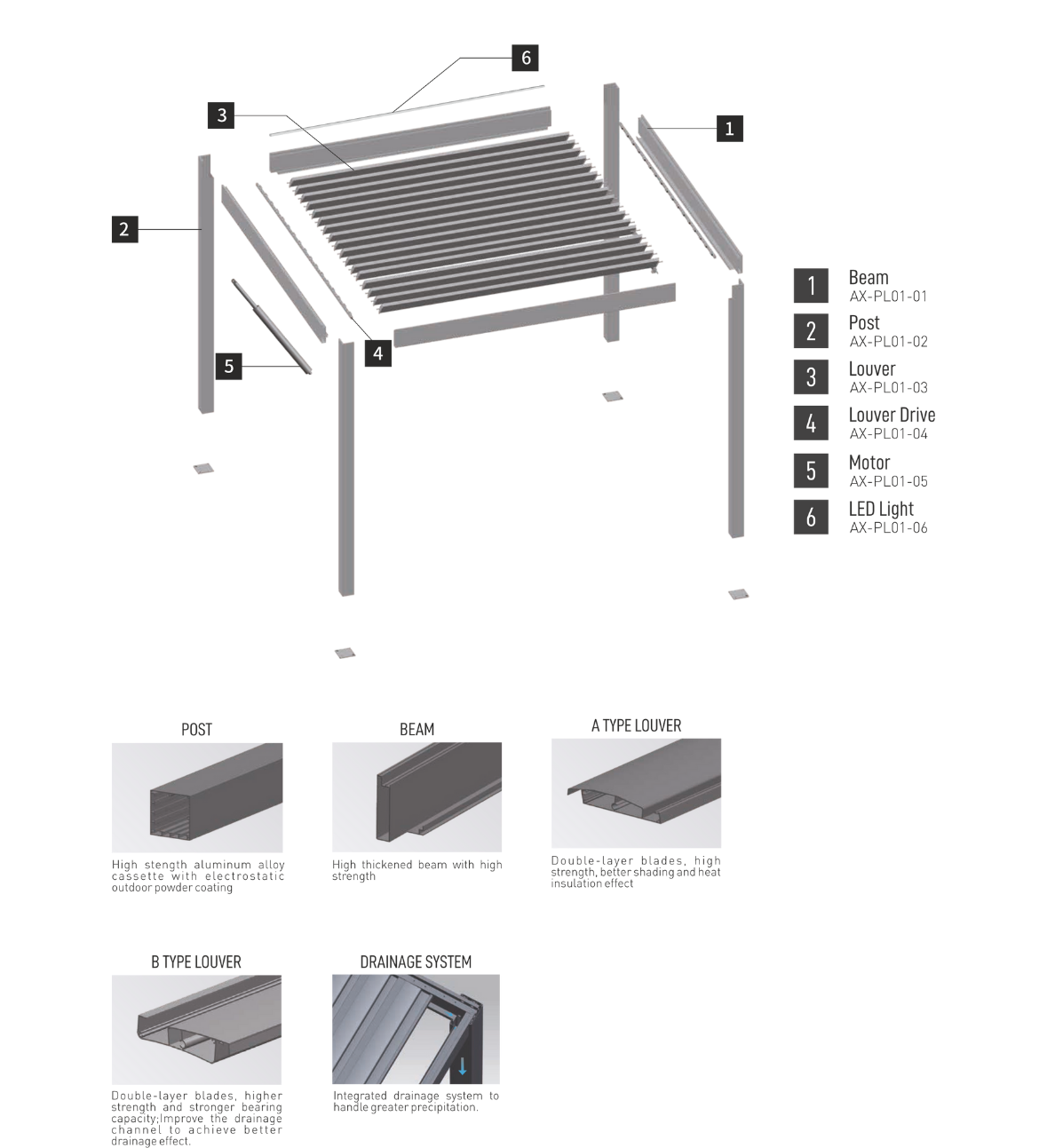

Technical Diagram
